The M series double-shaft shredder is designed according to the characteristics of waste plastics. The equipment can be customized according to customer needs to process waste plastics into smaller sizes. It has the characteristics of low noise, low energy consumption and high throughput. Through the shearing of this equipment, the bulk density of materials can be increased, thereby reducing transportation costs. In addition, the crushed materials can be further processed, such as material separation and cleaning.
Scope Of Application
Various waste plastic barrels, waste rubber, waste home appliance casings (plastic casings, metal casings), various plastic pipes, plastic bottles and other waste plastics.
This equipment can be customized according to customer needs to process waste plastics into smaller sizes. Through the shearing of this equipment, the stacking density of materials can be increased, thereby reducing transportation costs.
Product Parameters
| M-series | |||
| Model | M400 | M800 | M1200 |
| Overall dimensions (Lx WxH) (mm) | 1600x1225x1850 | 2710x1270x1850 | 3580x1965x2200 |
| Crushing box size (mm) | 400x480 | 800x480 | 1200x725 |
| Discharge height (mm) | 600 | 640 | 875 |
| Rotation diameter (mm) | Ф276 | Ф276 | Ф430 |
| Speed (RPM) | 13/7.7 | 14 | 15 |
| Number of blades (PCS) | 10+10 | 20+20 | 15+15 |
| Blade thickness(mm) | 20 | 20 | 40 |
| Motor power(kw) | 7.5 | 7.5+7.5 | 22+22 |
| Hopper volume (L) | 550 | 750 | 1360 |
| Weight(kg) | Approx 1470 | Approx 2300 | Approx 5120 |

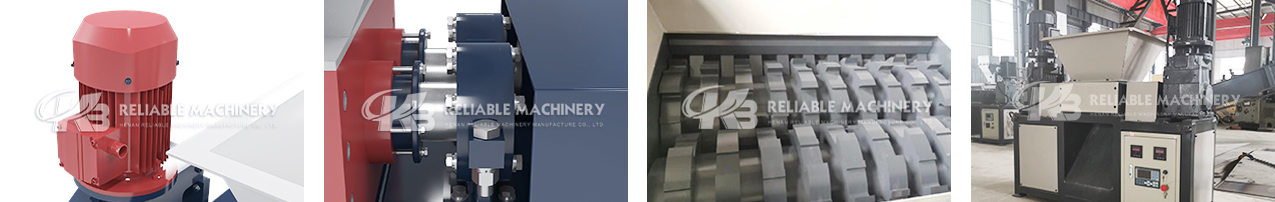

1. Low speed and high torque, wear-resistant design, suitable for high-strength materials.
2. Low dust, low noise, vibration reduction protection.
3. Split bearing bush, advanced sealing system.
4. Independent electric control box, compliant with CE standards.
Applications
After recycling from this equipment, combined with treatment using high-temperature or chemical reaction equipment, old plastics can be converted into refurbished plastics, fuels or other new chemicals or products.
Why Do Customers Like Reliable's Shredders?
The safety and stability of the machine are important factors for customers to choose us.
The entire machine complies with CE standards and is equipped with an intelligent PLC system, which not only ensures work efficiency but also ensures equipment stability.
We offer a variety of optional products to meet the diversity of customer needs for different shredding requirements.
| Mseries | |||
| Model | M400 | M800 | M1200 |
| Overall dimensions (Lx WxH) (mm) | 1600x1225x1850 | 2710x1270x1850 | 3580x1965x2200 |
| Crushing box size (mm) | 400x480 | 800x480 | 1200x725 |
| Discharge height (mm) | 600 | 640 | 875 |
| Rotation diameter (mm) | Ф276 | Ф276 | Ф430 |
| Speed (RPM) | 13/7.7 | 14 | 15 |
| Number of blades (PCS) | 10+10 | 20+20 | 15+15 |
| Blade thickness(mm) | 20 | 20 | 40 |
| Motor power(kw) | 7.5 | 7.5+7.5 | 22+22 |
| Hopper volume (L) | 550 | 750 | 1360 |
| Weight(kg) | Approx 1470 | Approx 2300 | Approx 5120 |
