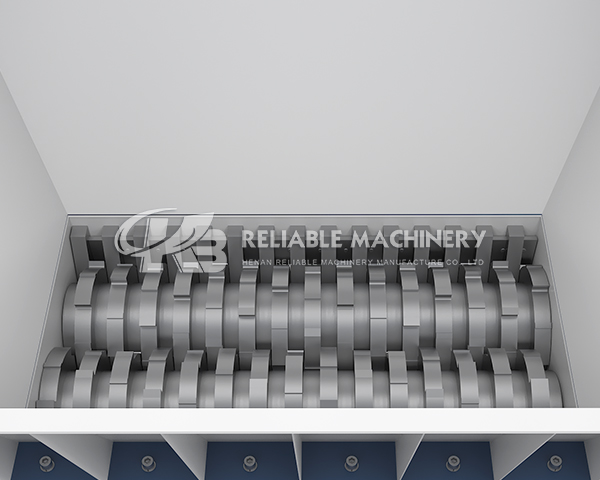

The X series double-shaft shredder is a super-torque shearing equipment designed for crushing large and hard materials. This double-shaft shredder equipment is widely used to crush bundles of materials containing foreign matter or high-strength materials. The modular design of the box greatly reduces the cost of maintenance of the main components of the equipment and saves maintenance time, giving it a great advantage in large-scale shearing equipment.
● Low speed, high torque shearing
● Low dust, low noise
● Wear-resistant design, low maintenance frequency
● The reducer is equipped with a vibration damping device to protect transmission components
● The tool is made of heat-treated high-strength alloy and is suitable for cutting various high-strength materials.
● Curved partitions are installed on both sides of the box to clear materials to ensure smooth discharging and increase output.
● Modular design of the box, equipped with independent side plates and bearing seats for easy maintenance
● The advanced sealing system prevents materials from leaking out of the box and ensures the service life of the bearings.
● Independent control electrical box, Siemens PLC
● The whole system complies with CE safety standards
| Model | X1500 | X1600 | X1800 | X2000 | X2200 |
| Overall dimensions (L*W*H) (mm) | 6350*2600*4000 | 5150*2210*2600 | 7000*3050*4000 | 7000*3400*4000 | 7000*3700*4000 |
| Crushing box size (mm) | 1500 * 1440 | 1600*880 | 1800*1440 | 2000*1440 | 2200*1440 |
| Discharge height (mm) | 1550 | 970 | 1550 | 1400 | 1400 |
| Rotation diameter (mm) | Ф750 | Ф515 | Ф750 | Ф750 | Ф750 |
| Speed (RPM) | 5.4-12 | 5.4-15 | 5.4-12 | 5.5-10 | 5.5-10 |
| Number of blades (PCS) | 30(50mm)/20(75mm) | 32 | 24(75mm)/18(100mm) | 26(75mm)/20(100mm) | 29(75mm)/22(100mm) |
| Blade thickness(mm) | 50/75 | 50 | 75/100 | 75/100 | 75/100 |
| Motor power(kw) | 55+55 | 45+45 | 75+75 | 110+110 | 132+132 |
| Hopper volume (L) | 3600 | 2000 | 4000 | 4200 | 4400 |
| Weight(kg) | Approx 27700 | Approx11400 | Approx 32450 | Approx43750 | Approx53500 |
